MANiBOT in Motion: How ABB’s Visual SLAM Technology is Transforming Robot Navigation

Mobile robots are becoming more common in places where humans work and move around, like warehouses, stores, and airports. For these robots to work well, they need to be able to move safely, precisely, and adapt to changes in their environment. The traditional robot navigation technologies – using laser sensors, magnetic strips on the floor, or special QR code markers – were developed for industrial, well-structured, environments. Thus, these older methods often require a lot of additional set up and they suffer decreased efficiency in frequently changing environments with a lot of moving objects. This challenge is particularly clear in the MANiBOT project, which aims to develop mobile robots with two robotic arms to perform complex tasks in real-world settings. Addressing this, ABB Robotics is contributing to this project by introducing an advanced vision-based navigation system that uses artificial intelligence to overcome the navigation challenges faced by MANiBOT and similar advanced robotic systems.

This navigation system is based on Visual SLAM (Visual Simultaneous Localization and Mapping) technology, which uses cameras to create a three-dimensional map of the space around the robot. Unlike older methods that only create flat, two-dimensional maps using laser sensors (2D-LiDAR-based systems), Visual SLAM builds a richer understanding of the environment. Like humans, Visual SLAM uses features existing naturally in the space – from marks on the floor to objects on the ceiling – to help the robot know exactly where it is. This works especially well in areas that do not have special navigation markers and in places where things move around frequently.

The advantages of Visual SLAM become clear when you look at how well it performs. In complex environments, Visual SLAM-based systems can be up to 95% accurate, while traditional laser-based systems typically achieve only 60-70% of accuracy (Sevensense Robotics, 2023). This improved precision comes from Visual SLAM’s ability to differentiate between fixed and moving objects, understand what is changing in the surrounding space, and always update its map to guarantee high accuracy over time.

Figure 1. VSLAM Vs Traditional 2D LiDAR-based systems

Visual SLAM advantages extend beyond just helping robots find their way around. The same cameras used for navigation can also help robots detect objects and avoid obstacles. This is especially important in places like supermarkets, airports, and warehouses, where robots need to detect and respond quickly to unexpected obstacles to ensure safety and efficiency. Visual SLAM also helps robots recognize and identify different objects in their environment, which makes them better at planning and carrying out their tasks.

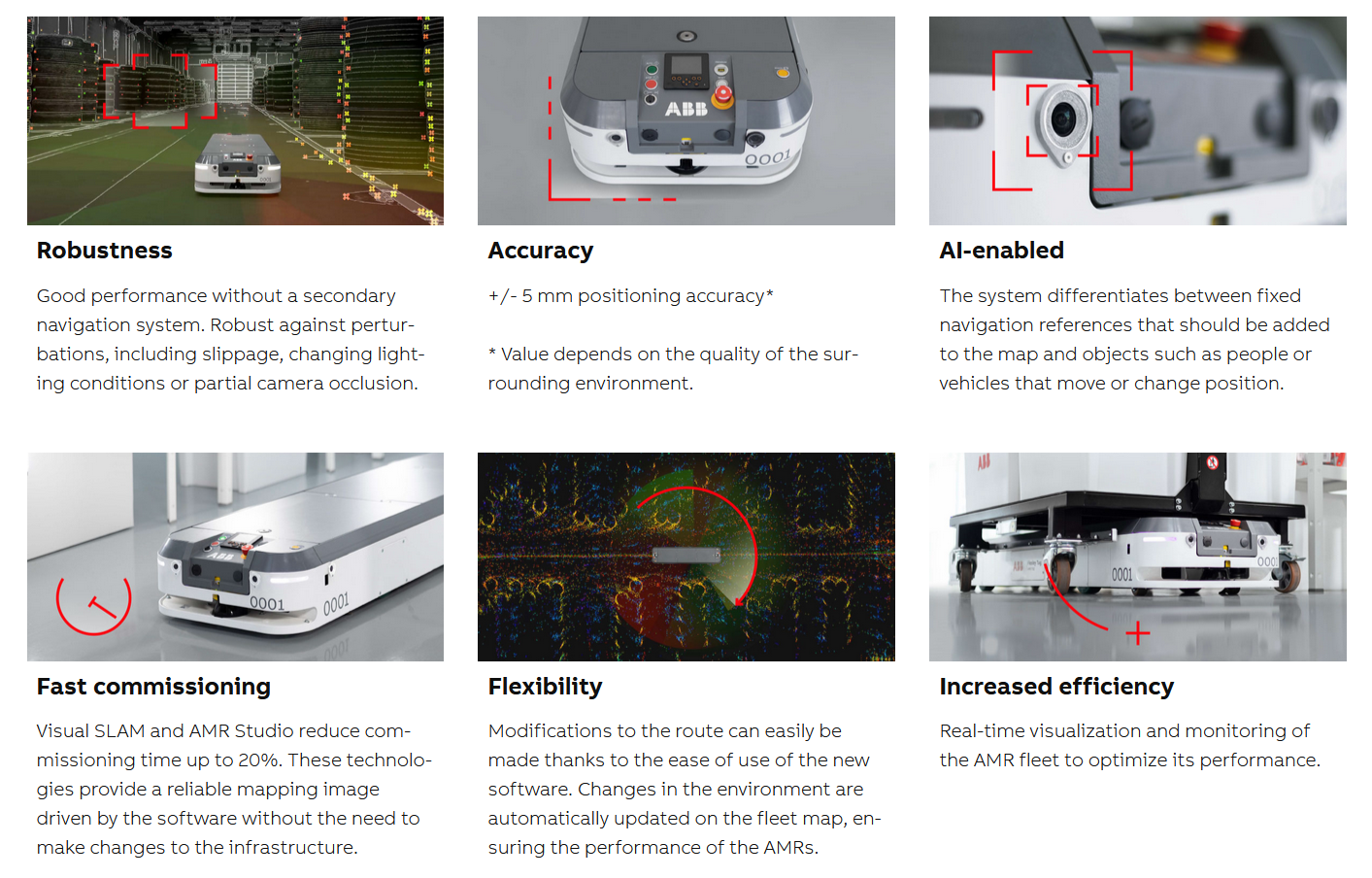

Figure 2. Key Features of ABB VSLAM Solution

For the MANiBOT project, Visual SLAM’s ability to create detailed 3D maps, understand the surrounding environment, and adapt to changing conditions is crucial. It helps ensure that these robots can work safely and efficiently alongside humans, even in unpredictable situations. Through Visual SLAM, ABB Robotics and its partners are helping robots better handle the challenges of working in real-world environments, leading to exciting new possibilities in robotics.

Want to know more?

Abbas Sidaoui, Asea Brown Boveri SA (ABB)
